PULP & PAPER KNIFE GATE VALVES

Pulp & Paper Knife Gate Valves have been developed for use in the most demanding applications, specifically for handling heavily contaminated waste, primarily for use in the paper industry.

TL Model

Through conduit bi-directional wafer style knife gate valve for high consistency or concentration media or fluids.

The TL model knife gate is a through conduit wafer valve designed for media with high consistency. The double seat design assures a non-clogging shut off on either normal or reverse flow. The valve is used in a wide range of demanding applications in industries such as:

  • Pulp & Paper
  • Wastewater Treatment Plants
  • Power Plants
  • Chemical plants
  •  Etc.

Sizes:

DN 50 to DN 1000 (larger diameters on request)

Working pressure:

DN 50 to DN 125: 10 (kg/cm²)
DN 150 to DN 250: 8 (kg/cm²)
DN 300 to DN 400: 6 (kg/cm²)
DN 450: 5 (kg/cm²)
DN 500 to DN 600: 4 (kg/cm²)
DN 700 to DN 1000: 2 (kg/cm²)

Standard flange connection:

EN1092 PN10
ASME B16.5 (class 150)
Other flange connection on request

Note: Other flange connections are available on request such as:
EN1092 PN6/16/25
BS D and E
ASME 125

TL MODEL DATA SHEET (EN)
Pulp & Paper Knife Gate Valves

TK MODEL

Through conduit bi-directional high performance wafer style knife gate valve for high consistency or concentration media or fluids

The TK model knife gate is a bi-directional wafer valve designed for media with high consistency. The double seat design assures a non-clogging shut off on either normal or reverse flow. The valve is used in a wide range of demanding applications in industries such as:

  • Pulp & Paper
  • Wastewater Treatment
  • Power
  • Chemical
  • etc.

Sizes:

DN 50 to DN 900 (larger diameters on request)

Working pressure:

  • DN 50 to DN 250: 10 bar
  • DN 300 to DN 900: 6 bar (1)

(1) 8 bar with duplex gate

Standard flange connection:

DIN PN 10

Other flange connections on request:

ASME B16.5 (class 150)
DIN PN 6
DIN PN 16
DIN PN 25
BS “D” and “E”

TK MODEL DATA SHEET (EN)
Pulp & Paper Knife Gate Valves

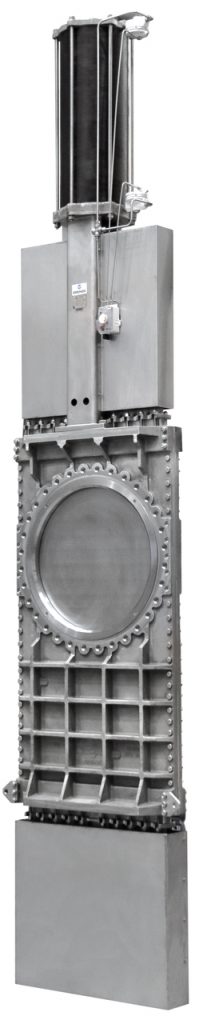

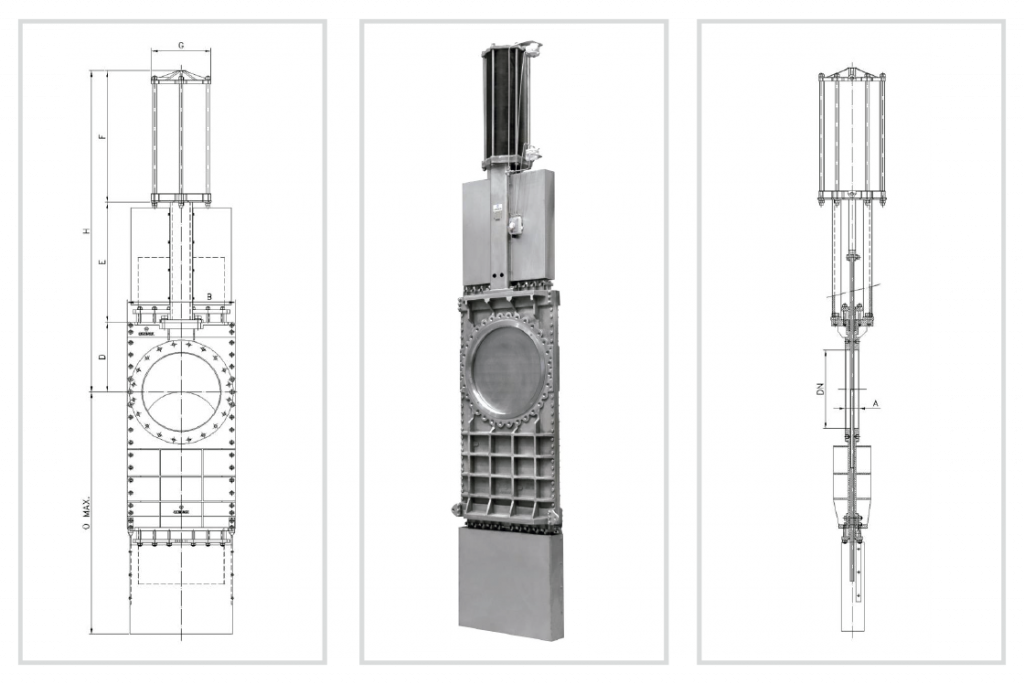

TH Model

Through conduit bi-directional high pressure wafer style knife gate valve for high consistency or concentration media or fluids

The TH model knife gate is a through conduit high pressure wafer valve designed for media with high consistency. The double seat design assures a non-clogging shut off on either normal or reverse flow. The valve is used in a wide range of demanding applications in industries such as:

  • Pulp & Paper
  • Wastewater Treatment Plants
  • Power Plants
  • Chemical plants
  •  Etc.

Sizes:

DN 300 to DN 1000 (larger diameters on request)

Working pressure:

  • DN 300 to DN 800: 10 bar
  • DN 900 to DN 1000: 6 bar

Standard flange connection:

DIN PN10

Other flange connection (on request):

EN1092 PN6/16/25 OR ASME B16.5

TH MODEL DATA SHEET (EN)
Pulp & Paper Knife Gate Valves

DT MODEL

Double gate bi-directional wafer style knife gate valve for very high consistency or concentration media or fluids

The DT model knife gate is double gate valve widely used in the Pulp and Paper industry (recycling or secondary fibre processing) designed to handle high concentrated or contaminated media. In open position, both gates retract into the body and allow full flow. When closing, the gates push stock and contaminants as staples, wires… out of the body into the flow.
Stroke time is the half of conventional valves.
All components subject to wear are replaceable.

Sizes:

DN 100 to DN 600 (larger diameters on request)

Working pressure:

  • DN 100 to DN 250: 10 bar
  • DN 300 to DN 400: 6 bar
  • DN 450: 5 bar
  • DN 500 to DN 600: 4 bar

Standard flange connection:

EN1092 PN10
ASME B16.5 (class 150)
Other flange connection on request

DT MODEL DATA SHEET (EN)
Pulp & Paper Knife Gate Valves

CR Model

Uni-directional round and square port wafer style knife gate valve for discharge and reject applications

The CR model knife gate is a heavy duty valve designed for handling difficult applications. This valve is suitable for use in recycle applications, like junk or sand traps of pulpers, high consistency cleaners or as silo outlet with solid material.
The two piece body with round inlet and square outlet (larger than the inlet) assures non-jamming.

Sizes:

DN 100 to DN 600 (larger diameters on request)

Working pressure:

DN 100 to DN 400: 7 bar
DN 500 to DN 600: 4 bar

Standard flange connection:

EN1092 PN10
ASME B16.5 (class 150) /on valve inlet only
Other flange connection on request

CR MODEL DATA SHEET (EN)
