SEGMENT BALL VALVE

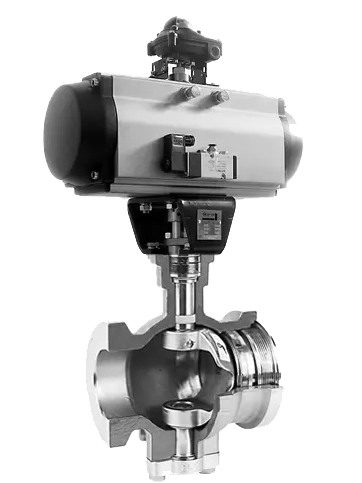

A direct mounting flaange according to ISO 5211 is standard for these ball valves. This feature allows an actuator to be mounted without the need for a mounting bracket and drive adapter. This results in a significant cost reduction, a compact automated unit, and a higher level of safety for operators.
The ISO regular-mounting pad accepts direct mounting of pneumatic and electric actuators. ISO 5211 is a European standard that specifies requirements for the attachment of part-turn actuators, with or without gearboxes, to industrial valves.

Features

  • V-notch provides equal percentage flow control
  • Uni-body prevents external leakage
  • Durable metal seat
  • Soft seat TFM1600 where metal seat is unsuitable
  • Live loaded packing
  • Protected peek bearing
  • ISO 5211 Direct-Mounting for easy automation
  • Extremely low actuator torque

Standards

  • Reduced bore quarter-turn valve
  • ANSI class 600 pressure rating
  • Stainless steel, carbon steel, alloy materials available
  • -4°F ~ 536°F (-20°C ~ 280°C) for metal seat
  • Face to Face acc. to ISA-S75.04 short version
  • Inspection acc. to API 598 or EN12266-1 where applicable
  • Tightness test acc. to ANSI/FCI 70.2 class IV for metal seat
