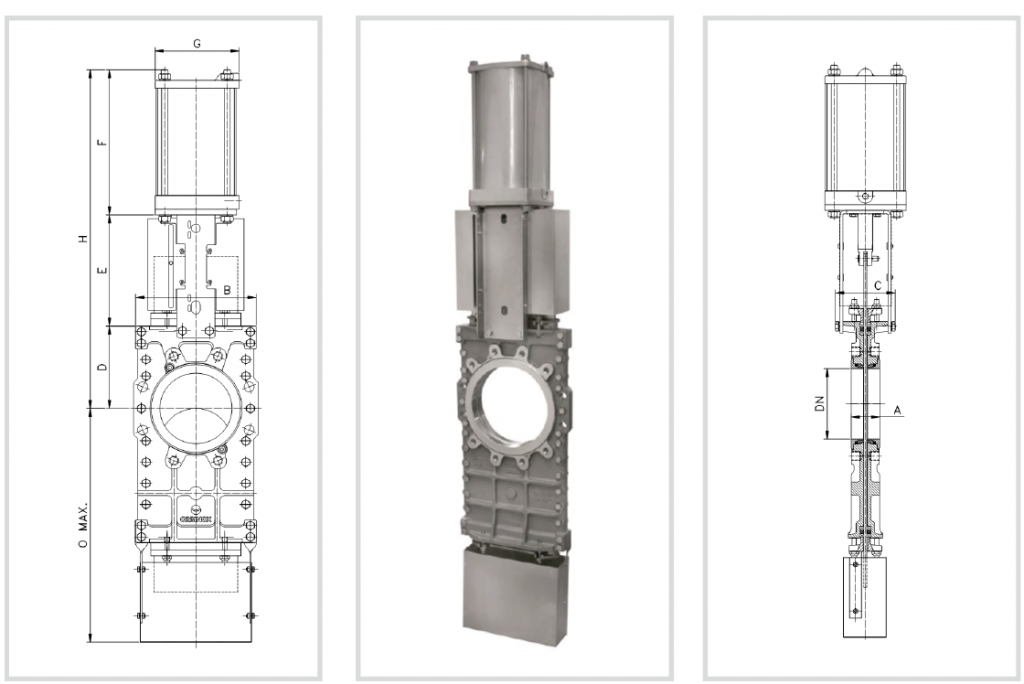

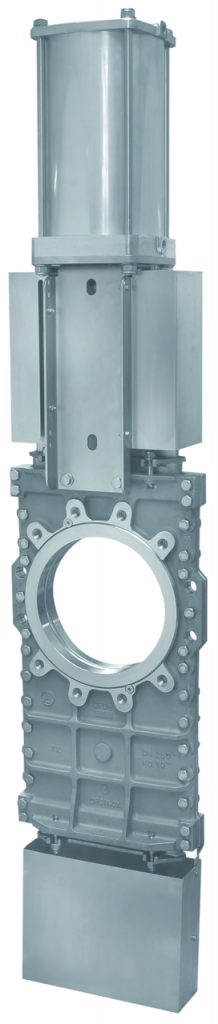

TK MODEL

Through conduit bi-directional high performance wafer style knife gate valve for high consistency or concentration media or fluids

The TK model knife gate is a bi-directional wafer valve designed for media with high consistency. The double seat design assures a non-clogging shut off on either normal or reverse flow. The valve is used in a wide range of demanding applications in industries such as:

  • Pulp and Paper
  • Wastewater treatment
  • Power
  • Chemical
  • etc.
SIZES
  • DN 50 to DN 900 (larger diameters on request)
WORKING PRESSURE
  • DN 50 to DN 250: 10 bar
  • DN 300 to DN 900: 6 bar (1)

(1) 8 bar with duplex gate

STANDARD FLANGE CONNECTION
  • DIN PN 10
OTHER FLANGE CONNECTION (ON REQUEST)
  • ANSI B16.5 (class 150)
  • DIN PN 6
  • DIN PN 16
  • DIN PN 25
  • BS “D” e “E”
DIRECTIVES
  • DIR 2006/42/CE (MACHINERY)
  • DIR 2014/68/EU (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A)
  • DIR 2014/34/EU (ATEX)

DATA SHEET (pdf)
