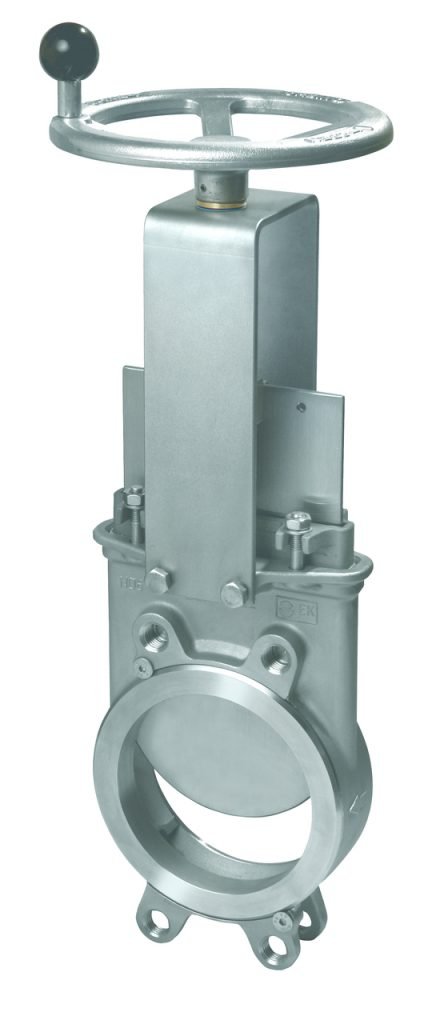

EK MODEL

Uni-directional high performance wafer style knife gate valve for general industrial applications

The EK model knife gate is a uni-directional wafer valve designed for general industrial service applications. The design of the body and seat assures non-clogging shut off on suspended solids in industries such as:

  • Pulp and Paper
  • Power plants
  • Wastewater treatment plants
  • Chemical plants
  • Food and Beverage
  • Bulk handling
  • Mining
  • etc.
SIZES
  • DN 50 to DN 1200 (larger diameters on request).
WORKING PRESSURE
  • DN 50 to DN 250: 10 bar
  • DN 300 to DN 400: 6 bar
  • DN 450: 5 bar (1)
  • DN 500 to DN 600: 4 bar(1)
  • DN 700 to DN 1200: 2 bar

(1) 6 bar with duplex gate

STANDARD FLANGE CONNECTION
  • EN1092 PN10
  • ANSI B16.5 (class 150).
OTHER FLANGE CONNECTION (ON REQUEST)
  • EN1092 PN6/16/25
  • BS “D” and “E”
  • ANSI 125
DIRECTIVES
  • DIR 2006/42/CE (MACHINERY)
  • DIR 2014/68/EU (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A)
  • DIR 2014/34/EU (ATEX)
  • Certification EN 14432: 2014 tanks for the transport of dangerous goods (under request)
