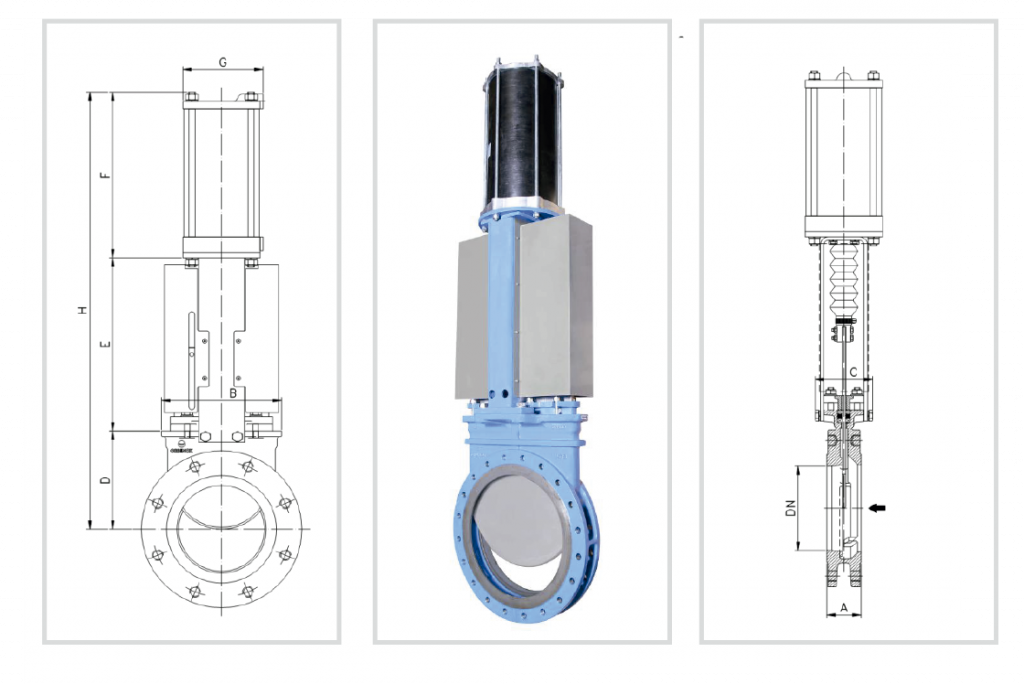

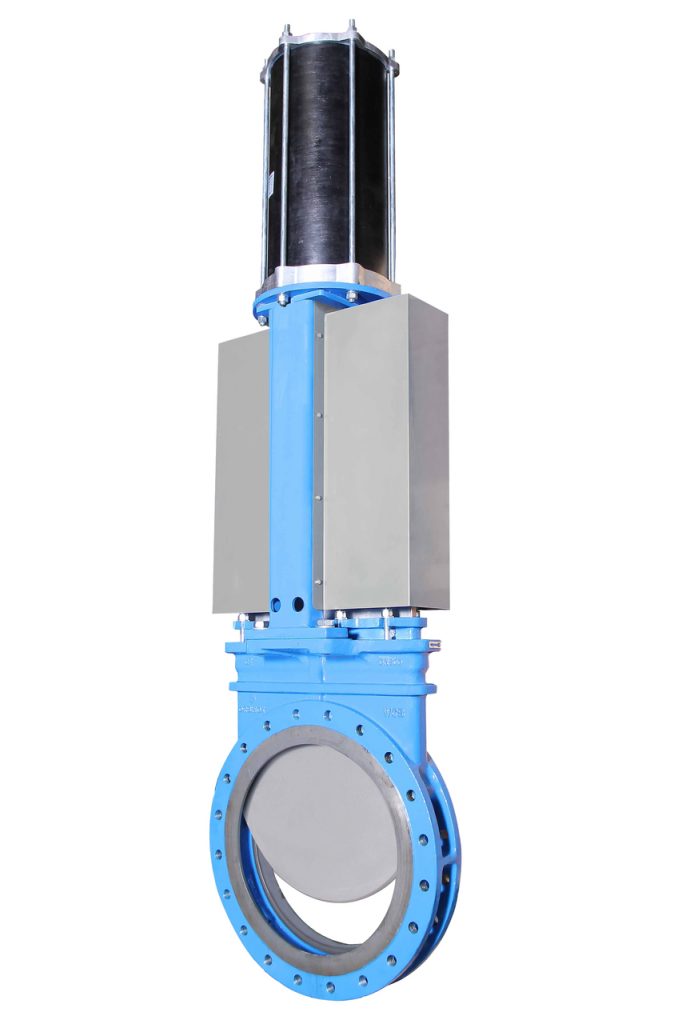

CX MODEL

Uni-directional NFPA full flange knife gate valve for coal burner isolation

The CX model knife gate valve is an uni-directional full-flange knife gate valve specially designed to isolate pulverized coal burner lines in coal fired power plants. The design of these valves follows the NFPA 85 requirements. The design of these valves follows the NFPA 85 requirements.

SIZES
  • DN 200/8″ to DN 900/36″
DESIGN PRESSURE
  • Exceeds 3,5 bar (50 psi) following NFPA 85
STANDARD FLANGE CONNECTION
  • DIN PN10
  • ANSI B16.5 (class 150)
OTHER (ON REQUEST)
DIRECTIVES
  • DIR 2006/42/CE (MACHINERY)

DATA SHEET (pdf )
