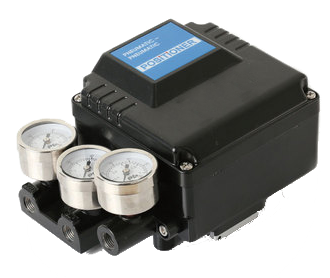

PPL / PPR MODEL – Pneumatic Positioner

PPL for linear and PPR for 90º rotating actuator

Application: double- and single-acting pneumatic actuators
» Pneumatic positioner in robust design
» Pressure gauges in stainless steel are standard
» Not sensitive to vibration
» Easy to calibrate and maintain

GENERAL DATA
  • Material: Powder-coated die-cast aluminum
  • Control air: Max. 7 bar instrument air Oil, water and dust-free
  • Max. air consumption: 4,8 m3/h at 1,4 bar instrument air
  • Stationary air consumption: 0,3 m³/h at 1,4 bar instrument air
  • Position Indicator: Mechanical visual on type PPR
  • Input Signal: 0,2-1 bar (3-15 psig)
  • Mounting: Stainless steel AISI 304
  • Positioner connection: NAMUR
  • Ambient temperature: -20ºC to + 70ºC
  • Options: Split Range Mounting for larger migrations and other rotation angels
