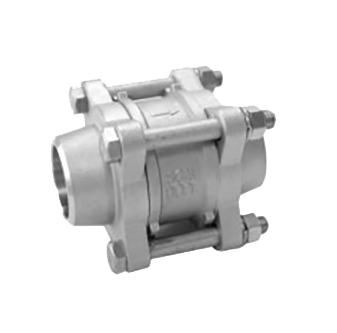

S3P MODEL

Check valve, 3-piece, stainless steel

Application: Water, liquid, oil, steam, air.
» Low pressure drop
» Metallic sealing
» Easy to maintain

GENERAL DATA
  • Type: S3P
  • Material: Stainless steell: 1.4408 (316)
  • Pressure class: PN63 (1000psi)
  • Disc: Stainless steel 1.4408 (316)
  • Spring/Holder: Stainless steel 316
  • Body sealing: PTFE
  • Screws/nuts: Stainless steel SS304
  • Connection: BSP; NPT female threaded; SW; BW
  • Temperature: -10° to + 180°C
  • Test: EN12266-1 / API598

DATA SHEET (pdf)
