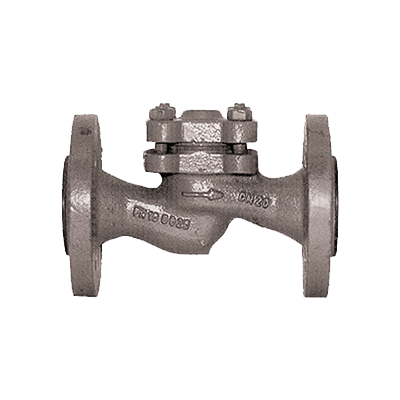

287C MODEL

Seat valve in cast iron, spring loaded

Flange connection PN 16

Application: Steam, water, oil and non-aggressive liquids
» Horizontal or vertical mounting

GENERAL DATA
  • Type: 287C
  • Material: Cast iron EN-GJS-400-18-LT
  • Pressure class: PN 16 Option PN25
  • Cover: EN-GJS-400-18-LT
  • Cone/stem: Stainless steel X20Cr13 1.4021
  • Seat: Stainless steel X12Cr13 1.4006
  • Spring: Stainless steel X17CrNi16-2 1.4057
  • Face-to-Face : DIN 3202-F1
  • Connection: DIN 2533
  • Temperature: -10C a +120°C up to 16 bar; +200°C up to 14,7 bar; +300°C up to 12,8 bar; +350ºC até 11,2 bar
  • Options: House and disc in other materials; Spring-loaded disc; O-rings in other materials; Other connections
