KKD-83 MODEL

Tripple offset butterfly valves

A triple offset butterfly valve has three separate offsets from the valve body’s center.
The ‘cam-controlled’ and ‘right-angle’ conical seal design ensures that the metallic sealing components do not touch until the valve is finally closed.
This results in repeatable sealing and a significant increase in valve life.
Triple offsets are generally used in applications similar to gate valves, where and tight shutoff and/or quarter turn actuation is desired.

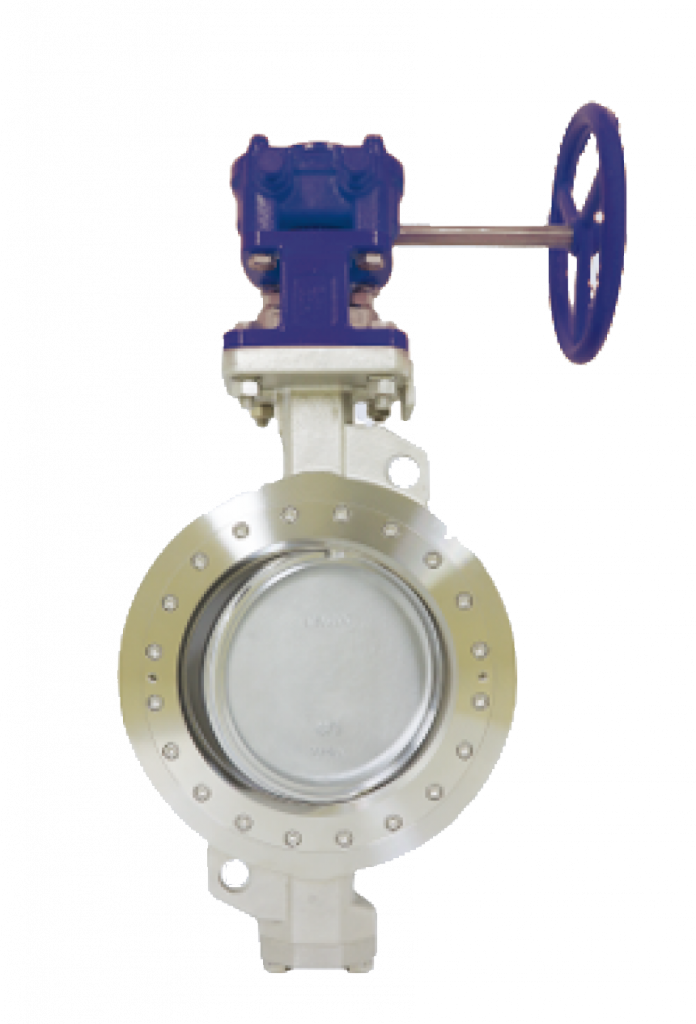

KKD-83 BUTTERFLY VALVE

FEATURES
  • Tight Shutoff: Shutoff classes from ANSI IV to VI are available to meet customer requirement. Standard seat material is PTFE/RPTFE sealing ring, or 304+graphite multi-layer construction for high temperature applications.
  • Sealing Face: Sealing face is tightly fixed on valve disc. Depending on the service condition, sealing material can be chosen from PTFE soft seat for general application, 316+Graphite for high temperature applications, and metal to metal seal face for abrasive services.
  • Stem Design: Strong single piece shaft minimizes stem deflection, and allows bi-directional sealing effect with bubble tight leakage rating. Another feature of the stem is the blowout proof design, which improve the safety of operation.
  • Firesafe Design: Metal to metal sealing face with graphite seal and packing, allows inherent firesafe functions.
  • Uni- and Bi- directional sealing: KLINGER die Erste offers uni-directional sealing effect on standard butterfly valve delivery. When required, bi-directional seat ring is available with complete new independent and self-adjusting seat ring, which is in contact with the disc.
STANDARDS
  • Design: API 609, ASME B16.34, EN 593
  • Inspection: API 598, EN 12266-1
  • End Connection: Wafer, Lug, Flange, ASME B16.5, EN1092 -1
  • Face to face: API 609 B Short Pattern, ISO5752 Series 13, EN 558, EN 593
  • Flange dimension: ASME B16.5, DIN 2632/2633, DIN 2634/2635

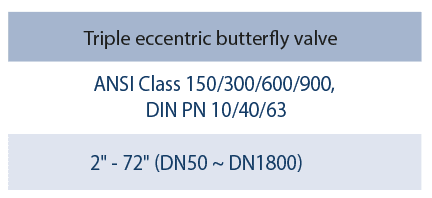

  • Pressure Rating: ANSI CL150/300/600/900, PN16/40/63
TEMPERATURE
  • PTFE: up to 200°C
  • Graphite: up to 400°C
  • Metal: up to 600°CFire-tested to API 607
