K200 METAL SEATED MODEL

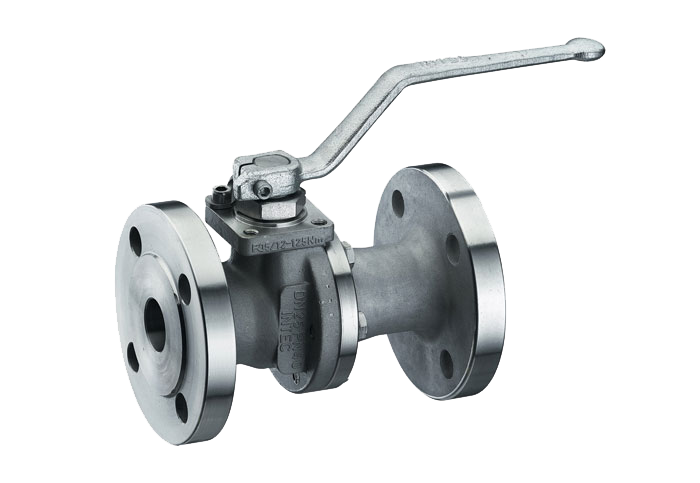

TWO-PIECE FLANGED BALL VALVE METAL SEATED

High end ball valves for the chemical industry. Proven design with perfect technical functionality. The ball valves are available in various material combinations and with different features.

CONCEPT OF INTEC SYSTEM TECHNOLOGY
  • Approvals acc. to virtually regulations
  • System construction unit of all components for reduction of storage costs
  • No o-rings – universal applicable
  • Stuffing box system absolutely ageing resistant
  • System design in a Graphite/KF cone ring principle
  • Real primary sealing, no friction washer or bearing ring using of the floating ring seal principle (Graphite cone ring in KFGN-profile)
  • Stem material Duplex (1.4462), using of best knowledge of the pump technology
  • Reinforced stem design for more safety in automation
  • FDA conformity for pharmaceutical application
  • BAM conformity for oxygen (optional)
ACCESSORIES
  • Heating jacket
  • Hand lever extension
  • Stem extension
  • Block unit – padlock unit
  • Grid unit
  • Hand lever with bayonet locking
  • Spring close unit – automatical return handle (“dead man handle”)
  • Gear (hand operated)
SPECIAL DESIGNS
  • Special designs like Duplex, Super Duplex, Hastelloy B2/C4/C276, Titanium, Zirconium, Monell, Nickel etc.
CERTIFICATES AND APPROVALS
  • Certified acc. to German clean air act VDI 2440, 100,000 cycles -40°C up to +220°C
  • Fire-Safe acc. to API 607 and DIN EN ISO 10497
  • Classification acc. to SIL 2
  • ATEX 2014/34/EU
  • Type Test Certificate TTC (optional)
  • Certified acc. to API 6D (optional)

DATA SHEET (pdf)
